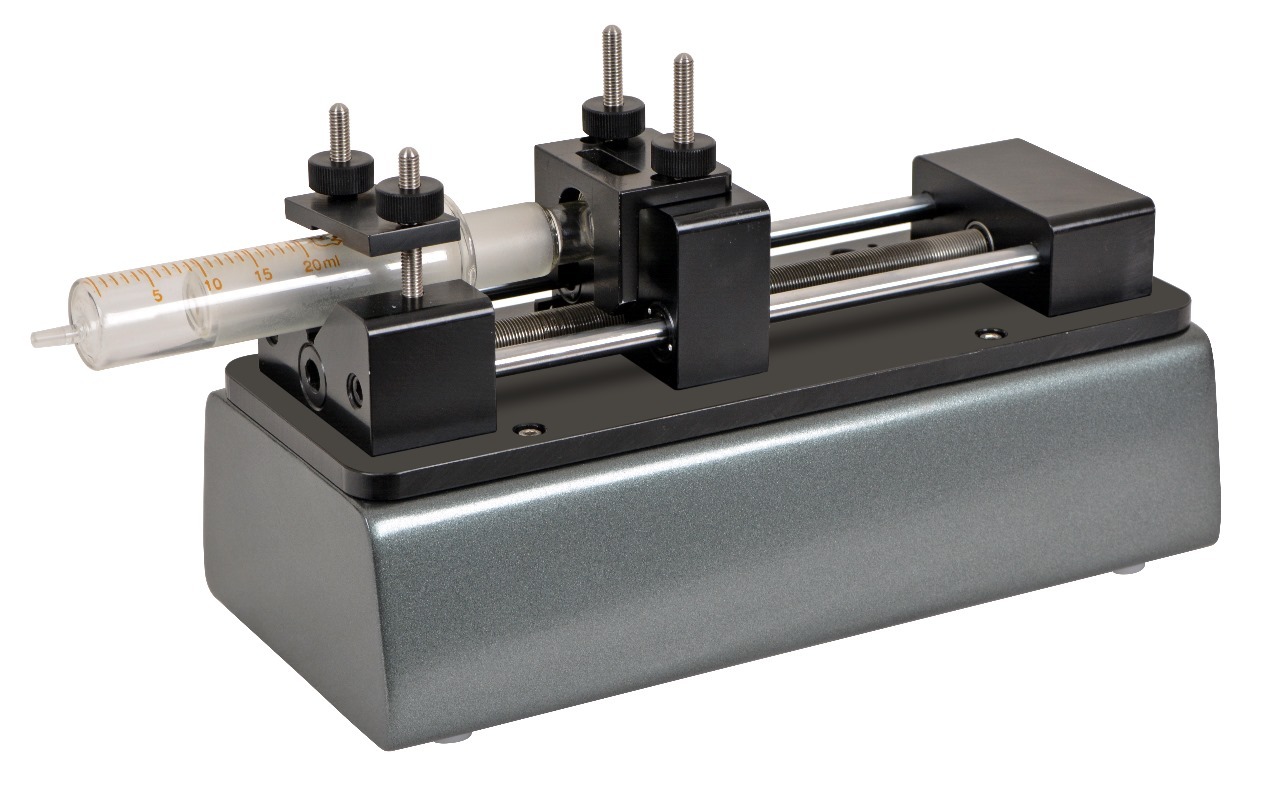

Syringe Pump Holmarc

132000 INR/Piece

Minimum Order Quantity : 1 Units

Get a Price/Quote

Request To Call Back

Syringe Pump Holmarc Price & Specifications

Usage Liquid dispensing for labs

Test Width 150 mm

Test Stroke 100 mm

Test Speed 0.001 to 50 mm/min (programmable)

Test Range Programmable syringe dispense volume

Temperature 5A C to 40A C operating range

Specimen Size 10 ml to 60 ml syringe capacity

Response Time Immediate (microcontroller)

Resolution 0.001 ml

Power Supply 230V AC, 50/60Hz

Port Size Compatible with standard syringes (up to 60 ml)

Operating Voltage 230V AC

Number of Specimens Up to 2 syringes

Mounting Type Bench-top

Measuring Range 0.001 ml to 60 ml

Max Height 220 mm (with syringe installed)

Machine Weight 4.5 kg

Interface Type RS232, USB

Humidity 10-90% RH (non-condensing)

Frequency 50/60 Hz

Features Programmable flow rate, continuous and step dispensing, backward/forward operation

Display Type LCD Digital Display

Control Mode Microcontroller Based

Capacity Max. 60 ml syringe

Automation Grade Semi-Automatic

Application Precise liquid handling and dispensing

Accuracy A 1% of set volume

<b>Equipment Type</b> Programmable Syringe Pump

Payment Terms Cash in Advance (CID)

Main Export Market(s) Africa, Middle East, Asia

Main Domestic Market All India

About Syringe Pump Holmarc Detail

A syringe pump is a device which can either infuse or withdraw liquid samples/fluids, at user defined flow rates and with selectable target volumes. Syringe pumps with simultaneous infusion and withdrawal with opposing syringes on a single drive, are also available.

Syringe pumps are widely used in medical field as well as in laboratory and research fields.

Applications of syringe pumps includes electro spinning, electro spraying, micro dialysis, dispensing/dilution, organ/tissue perfusion and fluid circulation.

Syringe pumps are also useful in microfluidic applications, such as micro reactor design and testing, and in chemistry for slow incorporation of a fixed volume of fluid into a solution.

Model: SPLF Series

Holmarc's SPLF series syringe pumps are versatile products ideal for precise dispensing of fluids in laboratory experiments, available at an economical price. Our bench-top Syringe Pump has been designed for safe and ultra-smooth fluid flow for lab applications and can be easily set up inside a standard fume cupboard. Holmarc manufactures syringe pumps in various models for single syringes, two syringes, four syringes and ten syringes.

Versatile and Precise Dispensing Solution

Holmarc's Syringe Pump is engineered for laboratories requiring accurate, controlled dispensing of liquids. Its wide compatibility with standard syringes and programmable dispense volumes make it ideal for applications such as titrations, reagent addition, and sample introduction. The microcontroller-based control mode ensures immediate response times and seamless programming of test parameters.

Key Safety and Usability Features

Safety is prioritized with built-in overload protection and an emergency stop function, providing peace of mind during operation. The LCD digital display presents real-time volume measurements at a high resolution of 0.001 ml, ensuring operators can monitor progress accurately. The bench-top design and low ambient noise (<55 dB) further enhance ease of use in busy lab environments.

FAQ's of Syringe Pump Holmarc:

Q: How does the Holmarc Syringe Pump ensure precise liquid dispensing?

A: The pump employs a stepper motor-driven lead screw mechanism, guaranteeing consistent motion and accurate dispensing. With programmable flow rates from 0.01 to 120 ml/min and a display resolution of 0.001 ml, the system achieves high precision, maintaining an accuracy of 1% of the set volume.

Q: What types of syringes can be used with this syringe pump?

A: The Holmarc Syringe Pump is compatible with both plastic and glass syringes ranging from 10 ml to 60 ml in capacity, accommodating sizes commonly used in laboratory settings.

Q: When should the emergency stop function be used?

A: The emergency stop feature should be activated immediately if any abnormal operation, overload, or unsafe condition occurs during dispensing. It ensures operator safety by halting all functions instantly.

Q: Where can the syringe pump be installed for optimal use?

A: Designed as a bench-top unit, the syringe pump can be conveniently placed on laboratory workstations. It operates reliably in ambient conditions from 5C to 40C with humidity between 10-90% RH (non-condensing).

Q: What is the process for upgrading the pump's firmware?

A: Firmware upgrades can be performed via the provided USB or RS232 interface. Follow the manufacturer's instructions to connect the device to a computer and execute the upgrade process, ensuring your pump benefits from the latest features and updates.

Q: How does the programmable control enhance usage?

A: The microcontroller-based system allows for direct programming of dispensing volume, flow rate, and test speed, enabling repeatable, hands-free operation. This automation reduces manual error and increases throughput in liquid dispensing tasks.

Q: What are the main benefits of using the Holmarc Syringe Pump in laboratories?

A: This syringe pump offers consistent accuracy, flexible programmability, and enhanced operator safety features. Its semi-automatic operation streamlines liquid dispensing, making it an excellent solution for precise laboratory workflows.
